Integration case
For a premium expedition vehicle platform, all six modules are covered from system architecture and prototype integration through validation and operator training.
Project profile
Premium RV Brand · Complete Autonomous System
Integration scope
6 systems
Delivery status
Validated
Integration brief
Project objective: Build 30+ days independent living capability for premium RV brand. Integration scope: All six modules full system integration. Delivery content: System architecture design, prototype integration debugging, performance verification testing, operation training document.
Integrated systems
06 / 06
01
HMT
48V DC architecture, automotive-grade RTOS operating system, CAN bus communication. Millisecond response, intelligent energy management strategy, real-time monitoring and warning. Supports touchscreen and mobile App dual control, provides standardized API interfaces, can interface with vehicle central control system
02
HMT
Multi-stage composite purification, production rate 16L/h, filter life 2m³, TOC<5mg/L. 12V vehicle power compatible, food-grade piping, automotive-grade safety standards. Auto-flush function, real-time water quality monitoring, quick-release structure for easy maintenance, unit weight <15kg
03
HMT
Three-in-one heat pump: cooling 3.2kW, heating 4kW, hot water 20L/30min. R744(CO₂) natural refrigerant, 48V DC architecture gas-free. Supports drying and other extended functions, integrated control, can link with Xbrain system for whole-vehicle thermal management collaboration
04
HMT

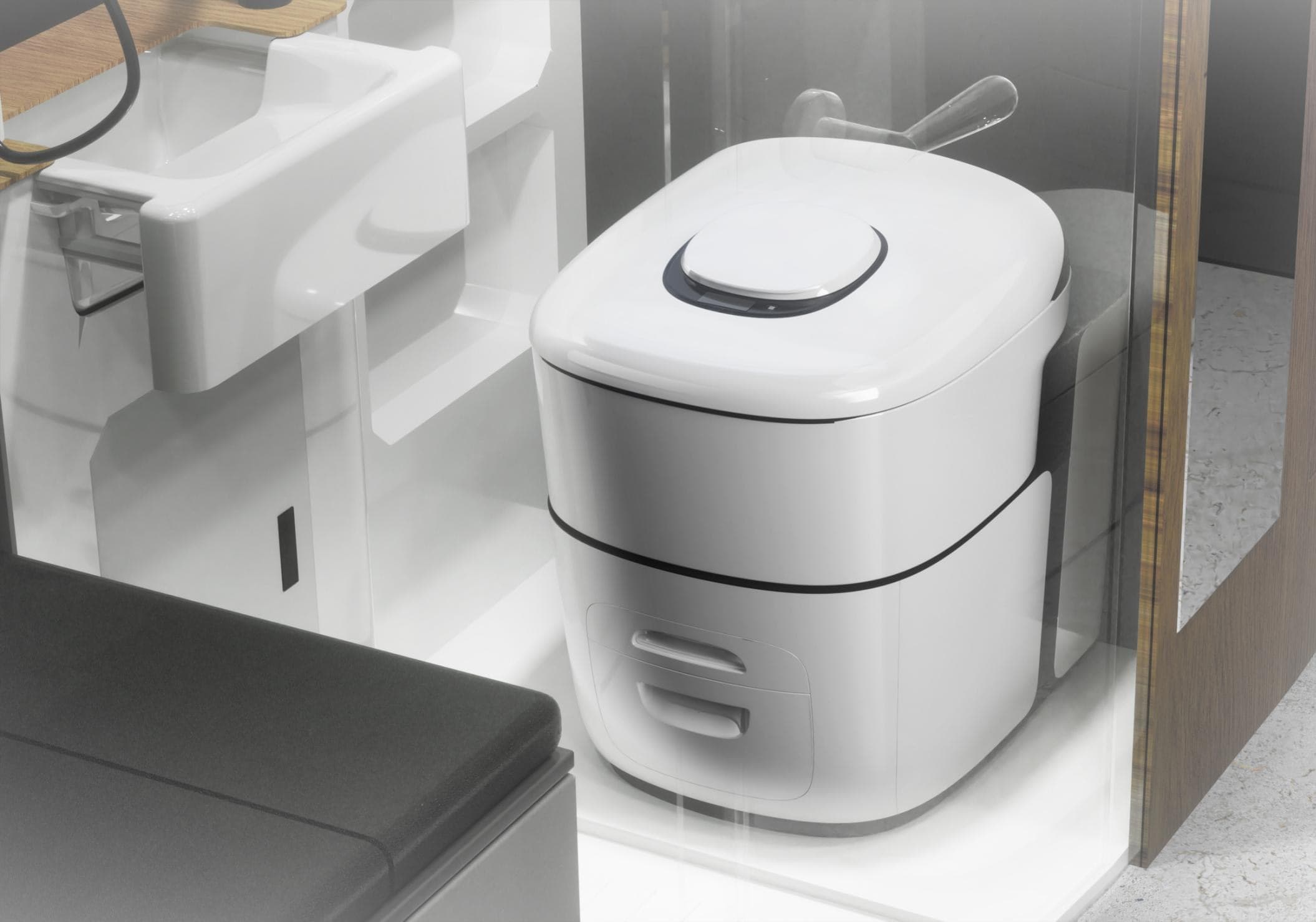

Microwave incineration technology, auto ash collection, sterile ash handling. 316 stainless steel inner tank ceramic coating, multi-point temperature control, microwave disinfection sterilization. Automatically selects energization time based on mixture weight, real-time monitoring display, ash box full alarm reminder for maintenance
05
HMT
VIP vacuum insulation technology, total volume 133L (fresh 105L + freezer 28L). Four-drawer independent temperature control, dual DC inverter core, full-area air cooling frost-free. Ice making 15kg/24h, noise 40dB. Adapts to all box-type RVs, especially B-type, modular function configuration
06
HMT
Polyurethane vacuum glass window frame with a heat transfer coefficient of 0.4W/(m²·K), sound insulation of 39dB, four times the impact resistance of conventional glass, and one-sixth the weight of an aluminum frame.
Implementation evidence
Verified outcome
